Dual-feed flexibility
Separate feed paths support both woody branches and lighter fibrous residues.
Industrial Wood Chipper
Turn branches, bamboo and crop residues into consistent biomass feedstock with electric, diesel or mobile configurations engineered around your material and site.
Model selection based on feed diameter, moisture, target size and hourly capacity.
1973Parent factory founded
50+Years in equipment
55+Patented technologies
ISO & CECertified systems
Mobile diesel buildFor remote and multi-site work
Wood crusher, configured for the job
One machine family. Multiple ways to work.
Cronus wood chippers combine knife cutting and hammer impact to reduce woody and fibrous biomass. A dual-inlet layout helps operators route branches and lighter agricultural residues through the appropriate feed path.
- Electric
- Stable, efficient drive for workshops and production lines with reliable grid power.
- Diesel
- Independent power for forestry, farms and sites where electricity is unavailable.
- Mobile
- Wheeled chassis options for practical relocation between collection points.
Choose a starting configuration
Wood chipper models
These specifications come from the supplied Cronus configuration sheets. Final output varies with species, moisture, feed consistency and screen setup.
01 / 04

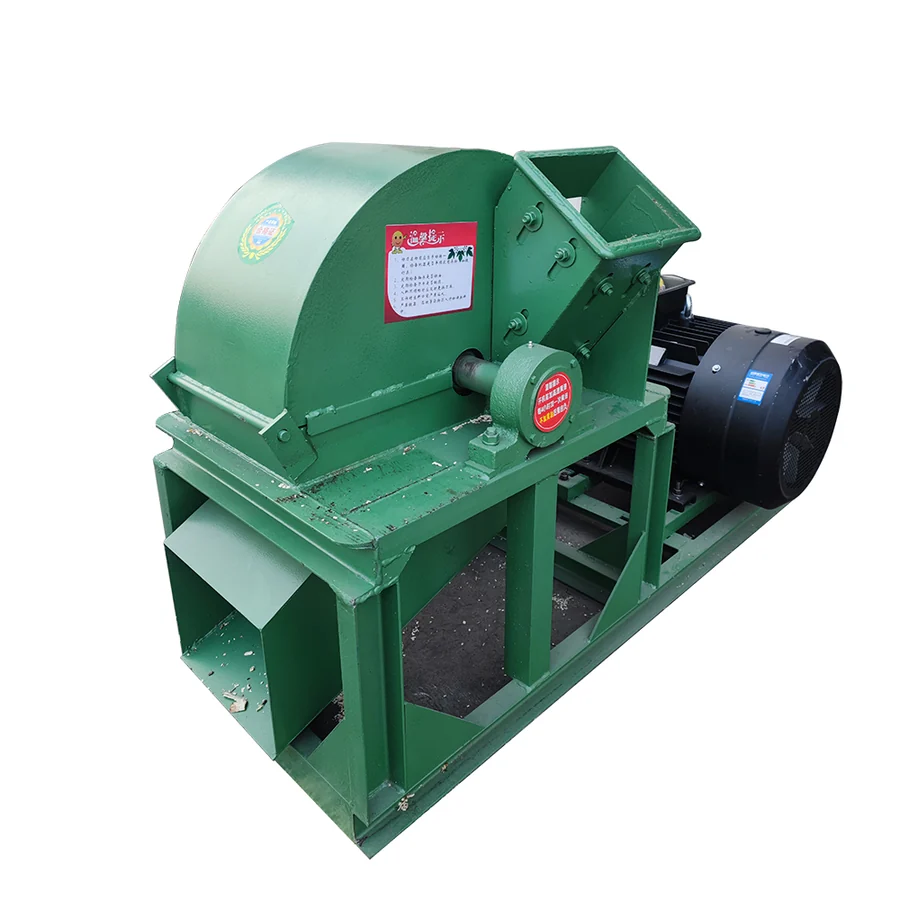

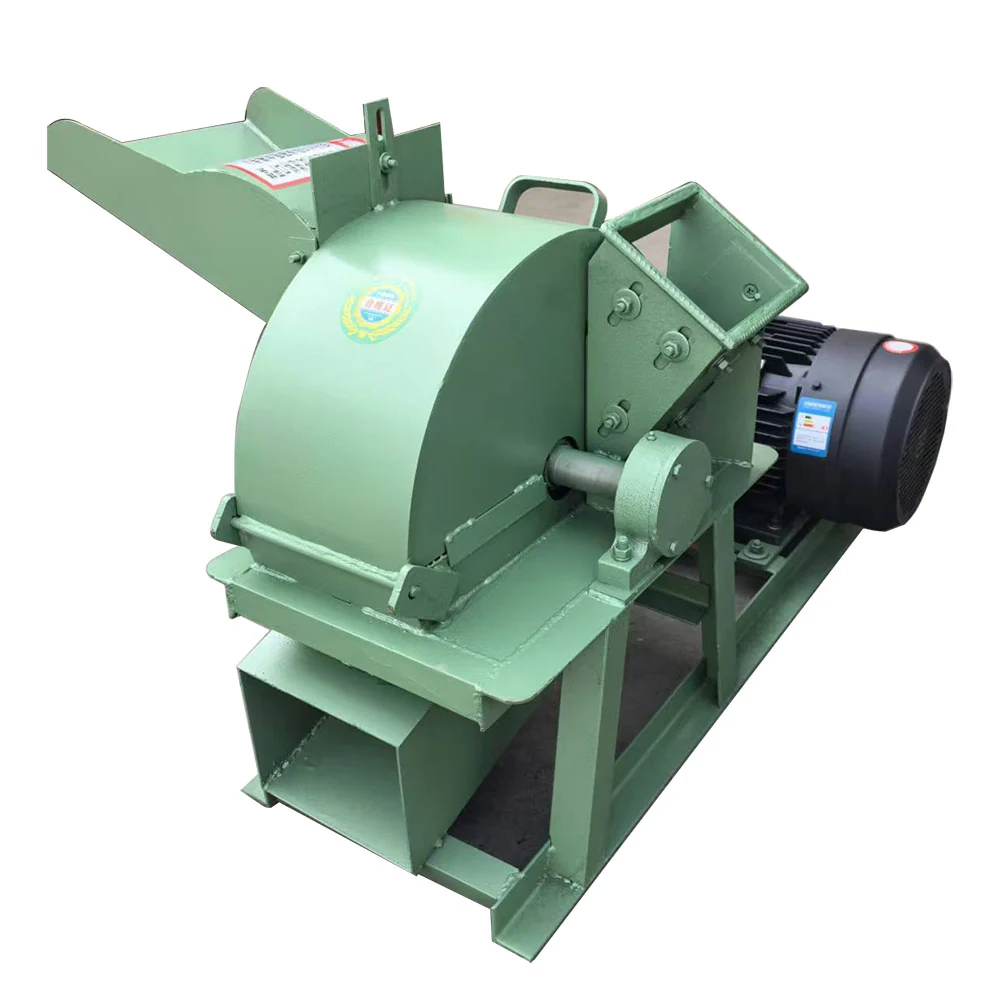

Model 420 Electric
Compact stationary machine for workshops, farms and entry-level biomass preparation.
- Motor power
- 7.5 kW
- Feed opening
- 12-14 cm
- Cutting set
- 4 knives + 12 hammers
| Model | Drive | Knives | Hammers | Feed size | Reference footprint | Capacity |
|---|---|---|---|---|---|---|
| 420 Electric | 7.5 kW motor | 4 | 12 | 12-14 cm | 1.5 x 0.8 x 1.2 m | By material test |
| 420 Diesel | 15 hp diesel | 4 | 12 | 12-14 cm | 1.5 x 0.8 x 1.2 m | By material test |
| 500 Electric | 15 kW motor | 4 | 12 | 15-17 cm | 1.7 x 0.9 x 1.3 m | By material test |
| 700 Diesel | 48 kW / 65 hp | Custom set | Custom set | Confirm by material | 2.8 x 1.8 x 1.5 m | Approx. 3-4 t/h |
Working principle
From irregular feed to controlled output
The exact rotor and screen configuration is selected for your material, but the core reduction path follows four clear stages.
- 01
Feed
Branches or logs enter the branch inlet; straw and lighter residues can use the wider auxiliary inlet.
- 02
Cut
Rotor-mounted knives shear long material into shorter pieces and control the initial reduction.
- 03
Impact
Hammer blades continue breaking the material until it can pass the selected sizing area.
- 04
Discharge
Rotor airflow carries qualified chips or coarse sawdust out for collection or downstream processing.
Built around real operations
Why Cronus wood chippers
Engineering choices focus on flexible deployment, predictable maintenance and a configuration matched to the feed.
Knife + hammer reduction
Two reduction actions handle irregular feed more effectively than a single cutting stage.
Electric or diesel drive
Select workshop efficiency or independent field power without changing the core process.
Mobile configurations
Optional wheeled chassis brings processing closer to branch and biomass collection points.

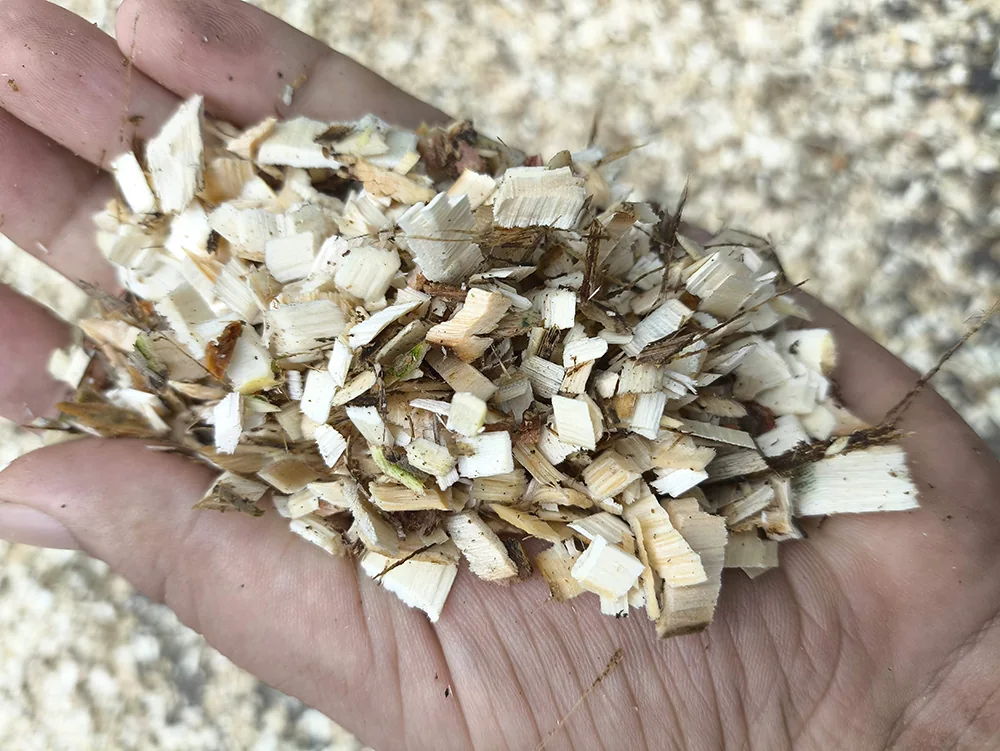

Output matched to use
Screen and machine configuration can be selected for fuel, bedding, compost or pellet pre-processing.
Factory-backed support
Application review, spare parts guidance and after-sales support come from an experienced equipment group.
Materials and industries
Put low-value biomass back to work
Typical feed includes pine, mixed wood, poplar, fir, raw bamboo, branches, straw and crop stalks. Keep stones, metal and other hard contaminants out of the inlet.
Pine & fir branchesMixed hardwoodRaw bambooOrchard pruningsStraw & crop stalksClean wood offcuts
Biomass fuelFeedstock preparation for briquettes, pellets and thermal use.
Forestry & farmsBranch reduction near harvesting and pruning sites.
Wood processingClean offcut recovery from furniture and timber operations.
LandscapingVolume reduction for green waste and maintenance crews.
Bedding & compostCarbon-rich material for animal bedding and organic processing.
Workshop and field footage
See the machines in operation
Two supplied project clips show mobile diesel and compact electric configurations. The Cronus watermark is applied in the website media layer.
FIELD NOTE / 01

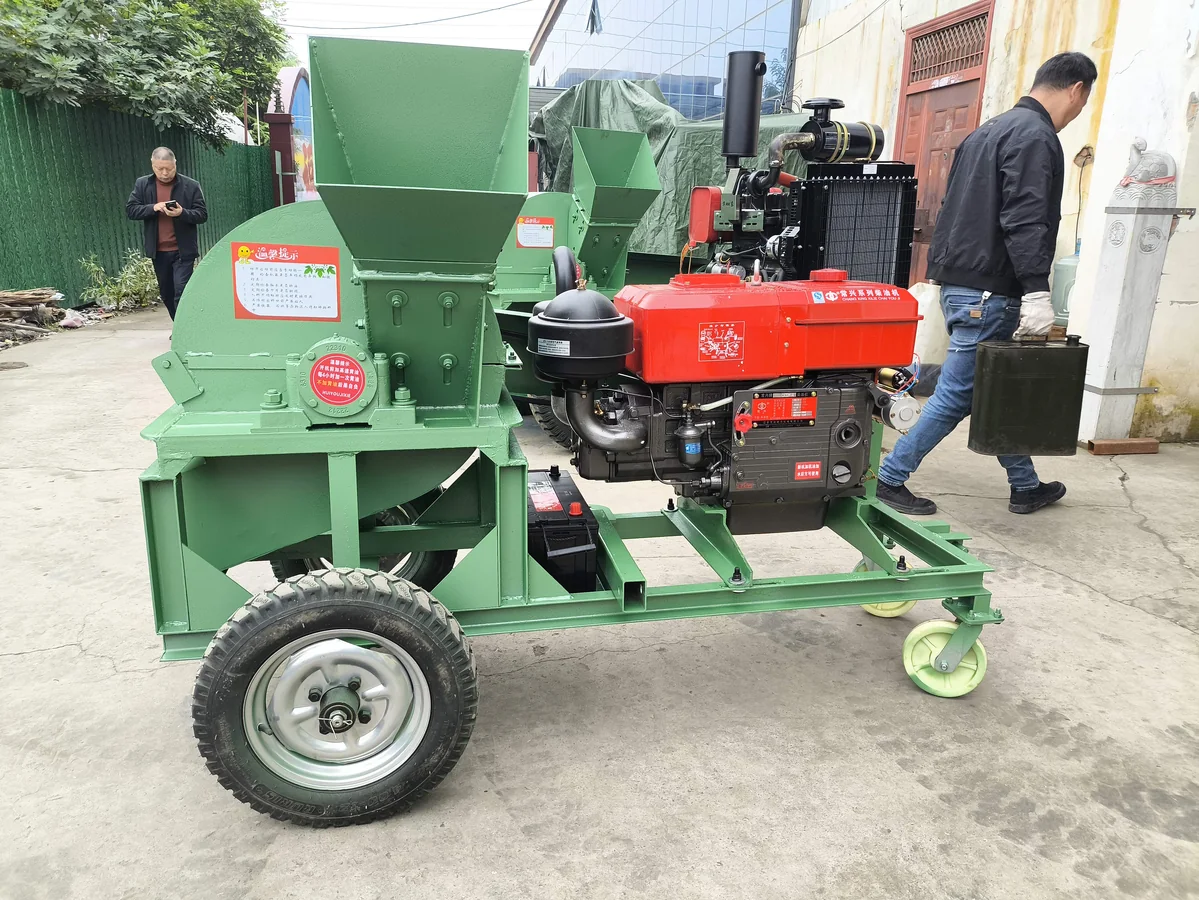

Mobile diesel wood chipper
Independent power and a wheeled frame make this arrangement suitable for forestry yards, farms and dispersed collection points.
- Diesel drive for off-grid work
- Mobile chassis for local relocation
- Configuration confirmed against feed diameter
A specialist backed by 50+ years
Cronus is the international subsidiary of Guilin Mining Machinery.

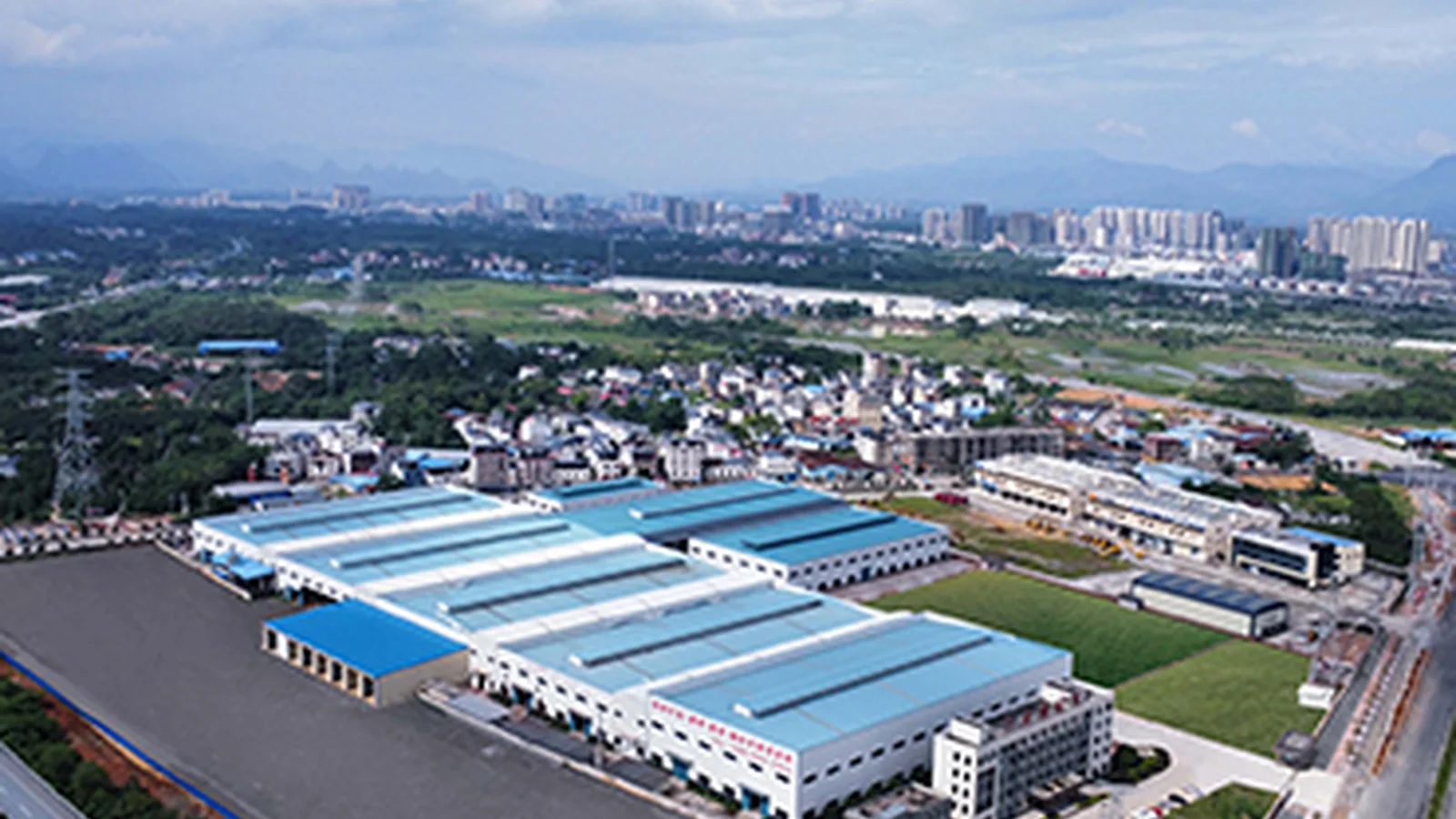

Shanghai Cronus Machinery Co., Ltd. is a wholly owned subsidiary of Guilin Mining Machinery Co., Ltd. The parent company was founded in 1973 as Guilin Mining Machinery Factory and has developed more than five decades of industrial equipment manufacturing experience.
The group integrates research, design, production and service, with experience across crushing, grinding, material handling and biomass processing equipment. International customers work with Cronus for application review, configuration, export coordination and after-sales support.
Explore our company20,000 m²Published manufacturing footprint
200+Processing, welding and assembly equipment
8,000+Published cumulative equipment sales
GlobalExport and service experience
Verified capability
Certificates and innovation
The group has been recognized as a High-Tech Enterprise and holds invention and utility model patents, ISO management system certifications and CE certifications across its equipment portfolio.
Buyer guidance
Wood chipper FAQ
Clear answers for specification, operation and project planning. For a final selection, send a material photo or short feed video.
sales@shcronus.comWhat materials can a Cronus wood chipper process?
Pine, mixed hardwood, poplar, fir, raw bamboo, branches, straw and crop stalks are typical feeds. Suitability depends on moisture, diameter and target output.
What is the maximum branch diameter?
The Model 420 is specified for approximately 12-14 cm feed size and the Model 500 for approximately 15-17 cm. Shape and hardness affect practical feeding.
Should I choose electric or diesel power?
Choose electric power for fixed production with reliable grid supply. Choose diesel for remote sites, forestry work or frequent relocation.
Can Cronus supply a mobile wood chipper?
Yes. A wheeled chassis can be configured for farm, forestry and job-site movement. Tell us the towing and road-use requirements in your market.
How does the wood chipper reduce material?
Knives first shear long feed into shorter pieces. Hammer blades continue the reduction, and rotor airflow moves qualified material through the discharge.
What production capacity can I expect?
Capacity varies by model and feed. The supplied Model 700 diesel configuration is rated at approximately 3-4 t/h under suitable working conditions.
Can the final chip size be adjusted?
Yes. Output can be tuned through screen selection and operating setup. We confirm the configuration after reviewing your target size and downstream use.
Can the machine process wet wood?
Moderately moist wood can be processed, but high moisture reduces throughput and may affect discharge. Include the expected moisture range in your inquiry.
How often should knives and hammers be maintained?
Inspect wear parts regularly. Service life depends on hardness, operating hours and contamination. Correct sharpening and clean feed extend wear life.
Can voltage and frequency be customized?
Yes. Motor voltage, frequency and electrical protection can be configured for the destination market, subject to engineering confirmation.
Can it feed a biomass pellet production line?
Yes. It can work as a pre-processing stage before drying, fine grinding and pelletizing. Cronus can review the complete material flow.
What information is required for a quotation?
Send the material type, maximum diameter, moisture, required capacity, target size, preferred power source, voltage and installation country.
What after-sales support is available?
Cronus provides application guidance, operation documentation, spare-parts support and remote technical assistance. Project-specific service scope is confirmed in the quotation.
Start with your material
Get a wood chipper configuration that fits.
Share the feed, diameter and output target. A Cronus specialist will help compare electric, diesel, stationary and mobile options.
